Phono Solar 310W Mono 60 Cell All Black

Add Ons
Pricing is an estimate, kits are customized for each building variation.
Pricing does not include freight shipping. Request a shipping quote and get a free roof layout.

DC Electrical Characteristics STC Power Rating 310W
PTC Power Rating 280.4W 1
STC Power per unit of area 14.8W/ft2 (159.8W/m2)
Peak Efficiency 15.98%
Power Tolerances data not available
Number of Cells 60
Nominal Voltage not applicable
Imp 8.45A
Vmp 36.7V
Isc 8.8A
Voc 46V
Temp. Coefficient of Isc 0.04%/K
Temp. Coefficient of Power -0.4%/K
Temp. Coefficient of Voltage -0.143V/K
Series Fuse Rating 15A
Maximum System Voltage 600V

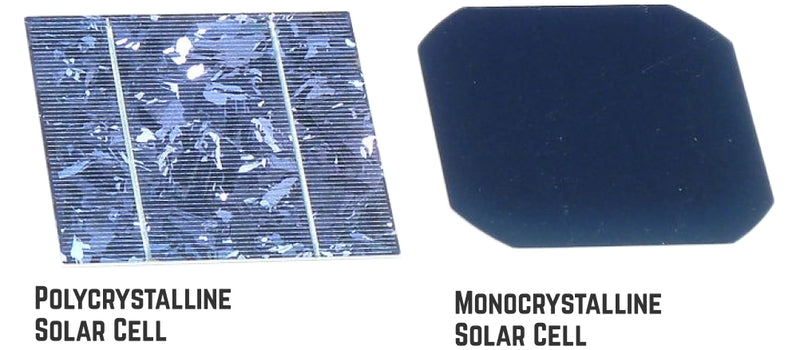

Mechanical Characteristics Type Monocrystalline Silicon
Output Terminal Type Multicontact Connector Type 4
Output Cable Wire Gauge 12 AWG
Output Cable Wire Type PV Wire
Output Cable Wire Length 43.3in (1,100mm)
Frame Color White
Backsheet Color data not available
Length 64.57in (1,640mm)
Width 39.06in (992mm)
Depth 1.38in (35mm)
Weight 39.68lb (18kg)
Installation Method Rack-Mounted

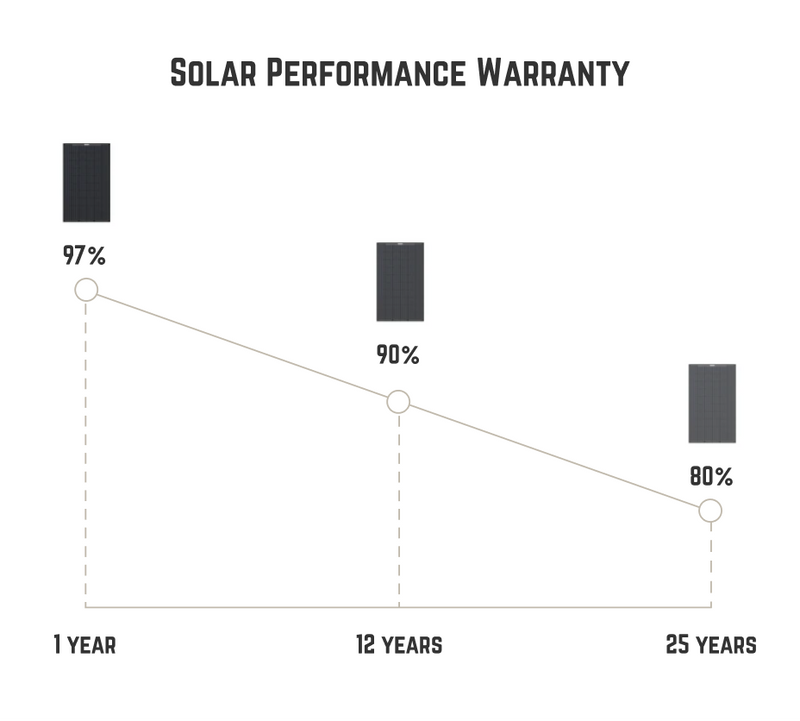

Warranty & Certifications 80% Power Output Warranty Period 25yrs
90% Power Output Warranty Period 12yrs
Workmanship Warranty Period 10yrs
UL 1703 Fire Classification data not available
Compliances UL 1703
CSI Listed Yes
California Solar Initiative (CSI) list of Eligible Modules
Customize My Box

Customize My Box

We'll custom design this system for you and calculate how many solar panels you need to meet your goals.
Request customized kit

Solar Calculator

How much do solar panels cost? Use our easy solar panel calculator to get a quick estimate of how many solar panels you’ll need for your home.
Size My Solar System

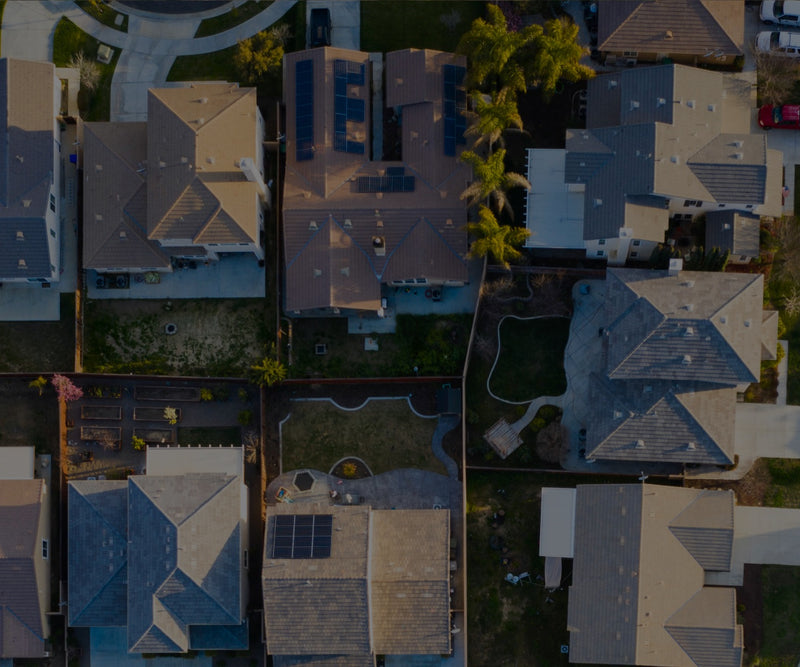

Free Solar Roof Layout
