Safe, Reliable and Worry-Free
The Enphase Ensemble automatically detects and transitions the system from grid power to backup power in the event of a grid failure so you can always have peace of mind.
This 10kWh battery backup package provides energy storage solutions for a small portion of the home. You can power lights, computer and cell phone charging, and energy efficient appliances such as a refrigerator.
With Enphase, you can design and customize the right energy storage system to meet your needs. You can connect multiple Encharge batteries to maximize backup potential for your entire home.

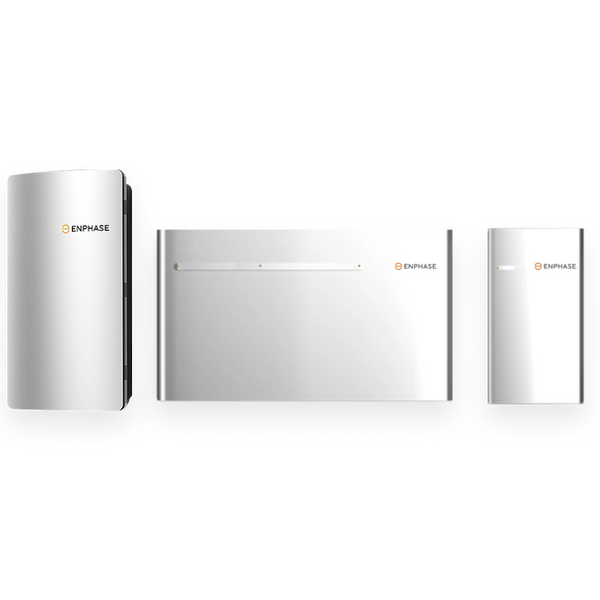

What’s Included in the 10kWh Enphase Ensemble Package?
- 1 Encharge 10 Battery
- 1 Enpower Switch
- 1 Ensemble Communications Kit
- 1 Cell Modem
Main breaker and branch breakers are sold separately. An IQ Combiner is required and is included with all micro inverter kits.
10kWh Enphase Ensemble Package Specifications
- Max PV system power: up to 5.76kW AC from grid tie inverter(s)
- 3.84 kVA Continuous output
- 5.7 kVA Peak output (10 seconds)
Encharge 10 Battery Specifications
- 10.08 kWh usable capacity
- Lithium iron phosphate (LFP) chemistry
- 96% round trip efficiency
- Outdoor Enclosure – NEMA type 3R
- Wall mount
- Warranty: >70% capacity, up to 10 years or 4000 cycles
Empower Switch Specifications
- Up to 200A main breaker support
- Supports whole home and partial home backup and subpanel backup
- Warranty: 10 years
Ensemble Communications Kit Specifications
- 2.4 GHz and 915 MHz frequencies in parallel for maximum reliability
- Ambient Temperature Range: -25º C to +50º C (-13º to 122º F)
- Warranty: 5 years
- Required to enable complete functionality of the Ensemble system
Customize My Box
We'll custom design this system for you and calculate how many solar panels you need to meet your goals.Request customized kit
