The Enphase Ensemble automatically detects and transitions the system from grid power to backup power in the event of a grid failure so you can always have peace of mind.
This 30kWh battery storage system supplies energy backup solutions for your entire home. You can power all lights, electronics and chargers, and common appliances like a refrigerator and freezer. Note that some non-critical appliances may need to be managed using Enphase Load Control.
With Enphase, you can design and customize the right energy storage system to meet your needs. You can connect multiple Encharge batteries to maximize backup potential for your entire home.

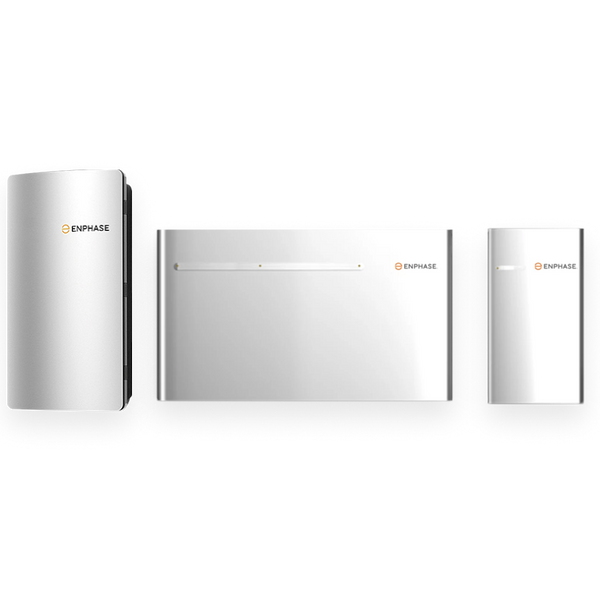

What’s Included in the 30kWh Enphase Ensemble Package?
- 3 Encharge 10 Batteries
- 1 Enpower Switch
- 1 Ensemble Communications Kit
- 1 Cell Modem
Main breaker and branch breakers are sold separately. An IQ Combiner is required and is included with all micro inverter kits.
30kWh Enphase Ensemble Package Specifications
- Max PV system power: up to 17.28kW AC from grid tie inverter(s)
- 11.52 kVA Continuous output
- 17.1 kVA Peak output (10 seconds)
Encharge 10 Battery Specifications
- Lithium iron phosphate (LFP) chemistry
- 96% round trip efficiency
- Outdoor Enclosure – NEMA type 3R
- Wall mount
- Warranty: >70% capacity, up to 10 years or 4000 cycles
Empower Switch Specifications
- Up to 200A main breaker support
- Supports whole home and partial home backup and subpanel backup
- Warranty: 10 years
Ensemble Communications Kit Specifications
- 2.4 GHz and 915 MHz frequencies in parallel for maximum reliability
- Ambient Temperature Range: -25º C to +50º C (-13º to 122º F)
- Warranty: 5 years
- Required to enable complete functionality of the Ensemble system
