LG Black Mono 335W 60 Cell

Add Ons
$415.00
i
Pricing is an estimate, kits are customized for each building variation.
Pricing does not include freight shipping. Request a shipping quote and get a free roof layout.

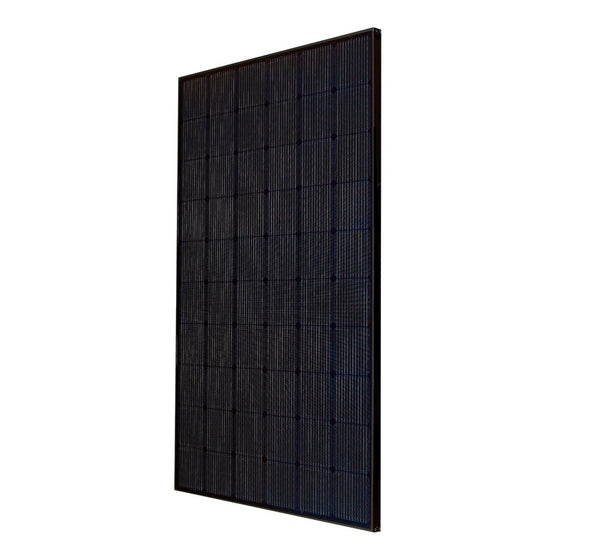

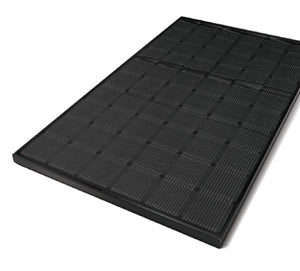

LG Solar > 335 Watt Black Frame NeON R Mono Solar Panel

40mm Black Frame, Black Backsheet.
60 Cell, high efficiency monocrystalline PV module.

LG, NeON2, 335W PV Module, Black Frame, Made in Korea, MC4-Type, LG335N1C-A5

LG's new module, NeON 2, adopts Cello technology. Cello technology replaces 3 busbars with 12 thin wires to enhance power output and reliability. NeON 2 demonstrates LG's efforts to increase customer's values beyond efficiency. It features enhanced warranty, durability, performance under real environment, and aesthetic design suitable for roofs.

The rear of the cell used in LG NeON 2 will contribute to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate a great amount of additional power.

LG's NeON2 monocrystalline PV modules are among the most efficient PV modules available thanks to a host of innovative technologies and enhancements at both the cell and module level. These modules feature high-gloss black frames, white back sheets, and thinner cell busses for a sleek appearance.

As a world-leading diversified manufacturer, LG backs these modules with 25-year linear performance guaranty and 12-year product warranty. These modules are listed to UL 1703, IEC 61215, IEC 61730- 1/-2, IEC 62716, and IEC 61701 and produced in an ISO 9001 certified factory.

Features

  • Enhanced Performance Warranty - LG NeON 2 has an enhanced performance warranty. The annual degradation has fallen from -0.7%/yr to -0.6%/yr. Even after 25 years, the cell guarantees 2.4%p more output than the previous NeON™ modules.
  • Great Aesthetics and Reiliability - LG NeON 2 has been designed with aesthetics in mind; thinner wires that appear all black at a distance. The product may increase the value of a property with its modern design. LG NeON now performs better on sunny days thanks to its improved temperature co-efficiency.
  • High Power Output and Durability - Compared with previous modules, the LG NeON 2 has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited spaces.With its newly reinforced frame design, LG has extended the warranty of the NeON 2 for an additional 2 years. Additionally, LG NeON can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.



General Information
Manufacturer: LG Solar
Product Line:
NeON 2 Series
Model ID:
LG335N1C-A5
Certifications and Safety Ratings: ce.giful.jpg iec.jpg  cec.jpg vde.jpg csa.jpg pv-cycle.jpg
Mechanical Data & Components

Technology: Monocrystalline (Mono)

Dimensions: 66.38 x 40 x 1.57 inches

Weight: 39.68 lbs

Cells per module: 60

Connector Type: MC4

Junction Box: IP68 with 3 Bypass Diodes

Module frame material: Anodized Aluminum

Module frame thickness: 40 mm

Electrical Characteristics

Nominal Maximum Power (Pmax): 335 W

MPP Voltage (Vmpp): 34.1 V

MPP Current (Impp): 9.83 A

Open Circuit Voltage (Voc): 41.3 V

Short Circuit Current (Isc): 10.48 A

Module Efficiency: 19.6%

Maximum System Voltage: 1000 V

Maximum Series Fuse Rating: 20 A

Power Tolerance: 0 ~ +3

Module Fire Performance (USA): Type 1
